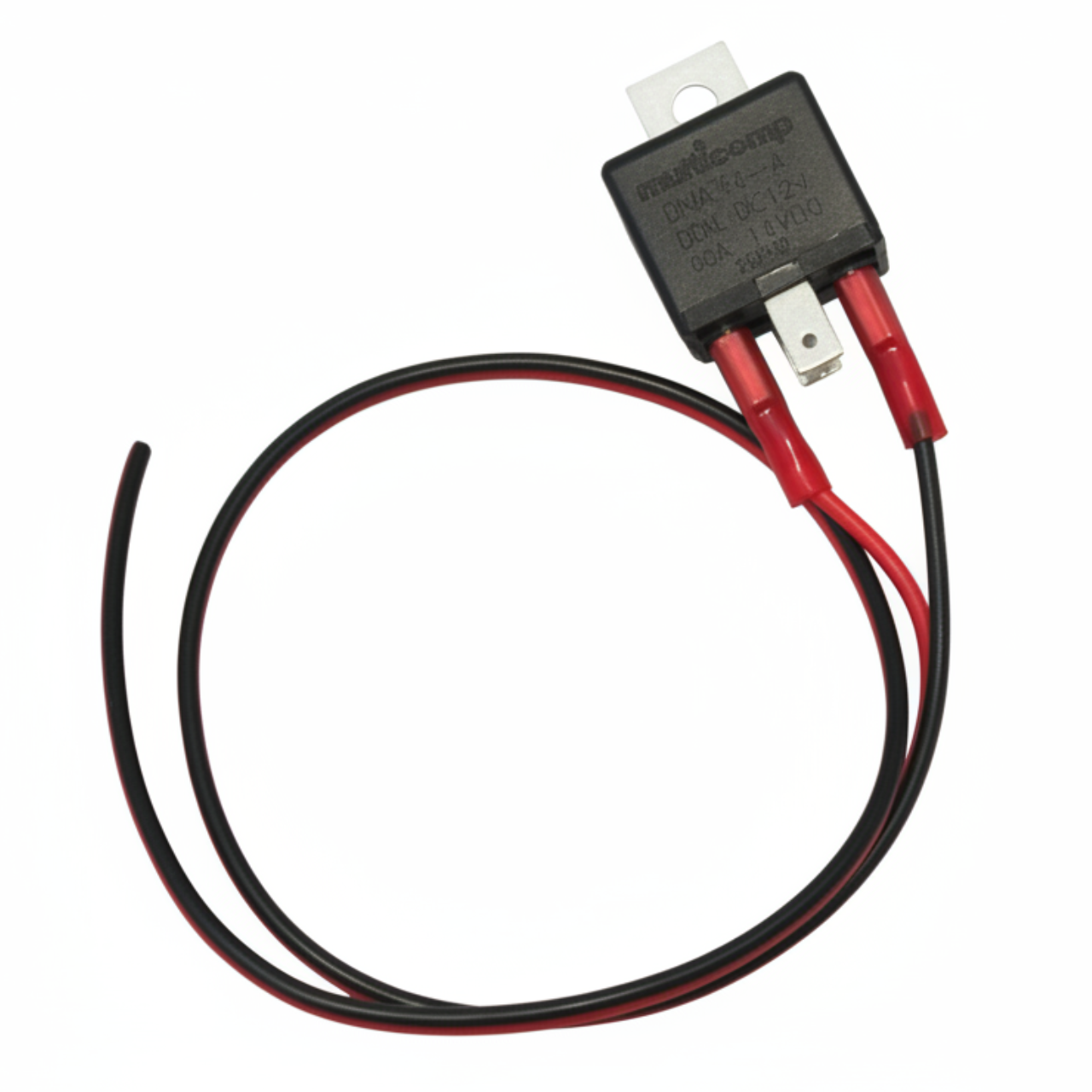

Relay 12V 40A SPST Normally Open
Regular price
$20.00
Ready to work out of the box!
Need us to pre-program a product before shipping? Ask about our programming service.
Got questions?
Feel free to get in touch
Ask an expert!
Relay 12V 40A SPST Normally Open
Backwoods uses these SPST relays to interface charge control and inverter 12 volt aux output to battery vent fans and 2 wire generator auto start commands, among other uses. Basic wiring diagram for battery vent fan wiring included.
1/4" tabs accept standard female quick-disconnects or commonly used four and five pin OEM relay sockets. 18" nominal 2 conductor leads.
Specifications: Coil data -- Coil nominal voltage: 12VDC
- Coil resistance: 90ohms ~10%
- Nominal Current: 133.3mA ~10%
- Operating voltage: 8.4VDC Max.
- Release voltage: 1.2VDC Min.
- Max Coil Voltage: 15.6VDC 130% of Nominal Voltage
- Contact Rating: 40A 14VDC Resistive
- Max Switching Voltage: 75VDC
- Max. Continuous Current: 60A
- Max. Inrush Current: 100A
- Dimensions: 1" (H) x 1" (W) x 1" (D) (less mounting tab)
- Model: CMA31-DC12V-A
