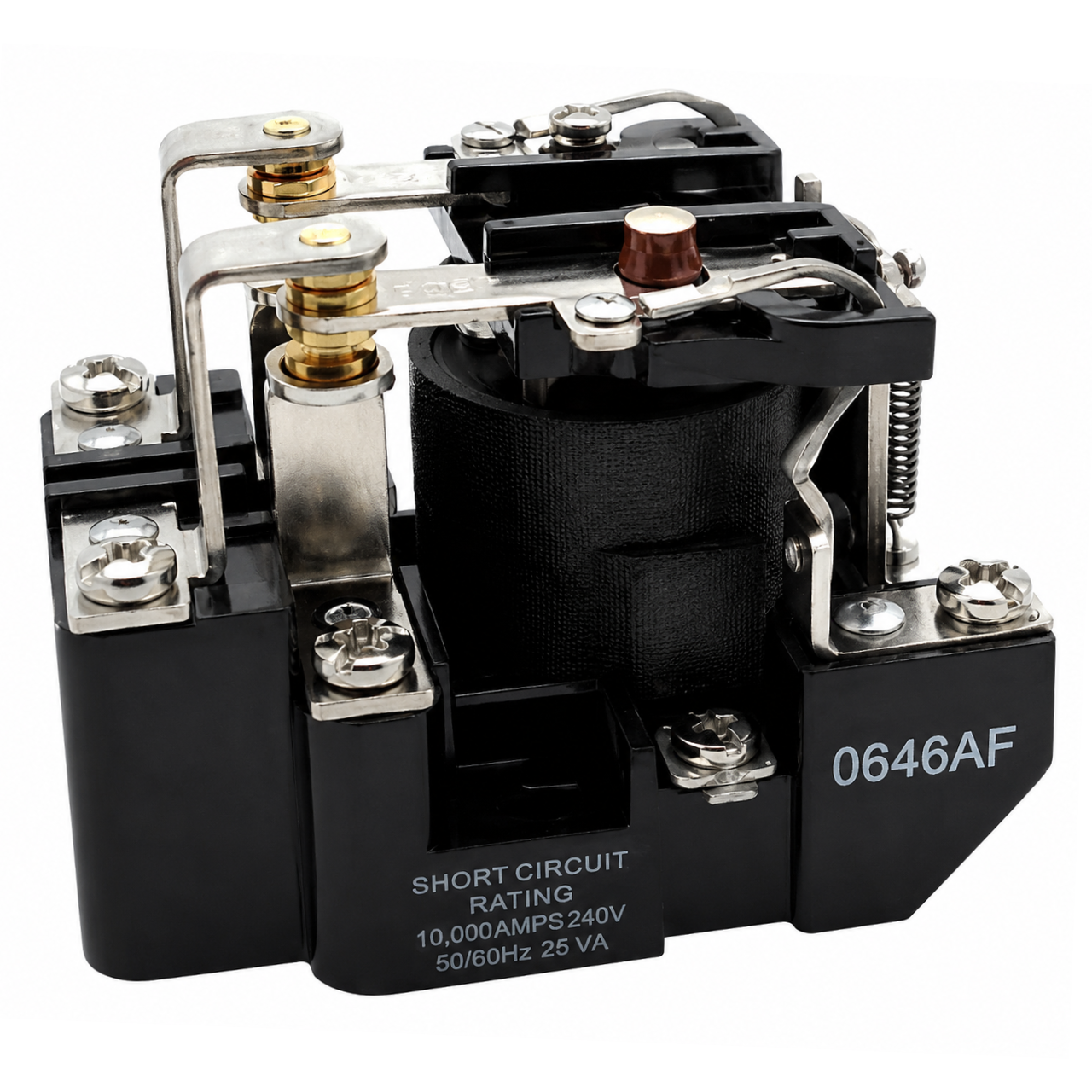

12V 40A DPDT Relay

SKU: O-12VRELAY
$58.00
Only 3 left
Low inventory - Hurry up!
Ready to work out of the box!

Need us to pre-program a product before shipping? Ask about our programming service.

Got questions?

Feel free to get in touch

Ask an expert!

Email (208) 263-4290

12 volt Relay  Coil for opening and closing contacts is triggered by 12 volt source.    Contacts are rated to handle up to 40 amps at 300VAC/28VDC.  Two legs. External relays are often used when a signal source or voltage level is not powerful enough or appropriate to drive a load directly. This relay is often used with the A-DIGTIME12 (sold separately) programmable timer to drive water pumps, lights, etc. on a repeating schedule. 190 mA coil power consumption 3" x 3" x 2" One year warranty
