10/3 Flat Submersible Pump Cable

SKU: P-PUMP-WIRE3
$4.00
In stock

Ready to work out of the box!

Need us to pre-program a product before shipping? Ask about our programming service.

Got questions?

Feel free to get in touch

Ask an expert!

Email (208) 263-4290

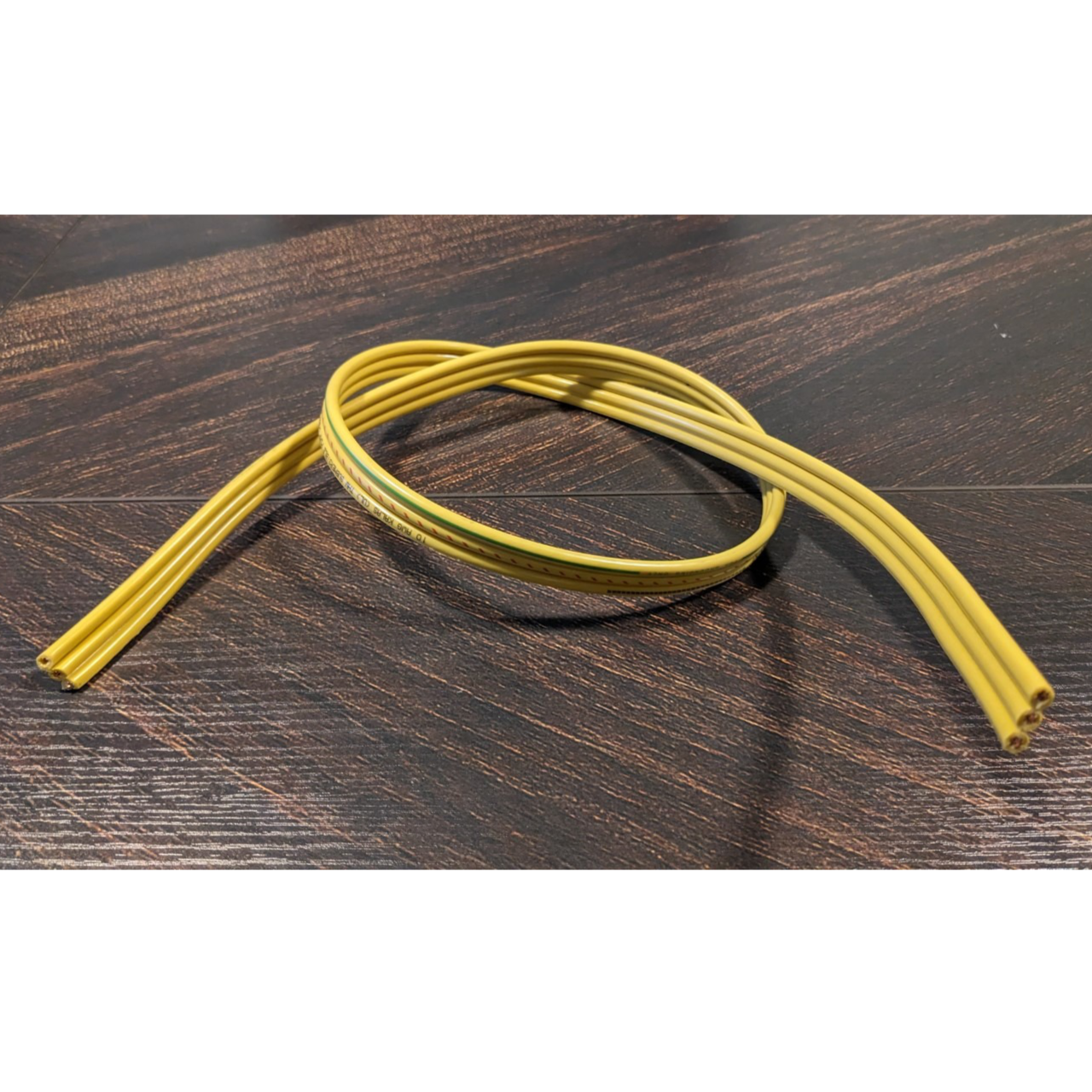

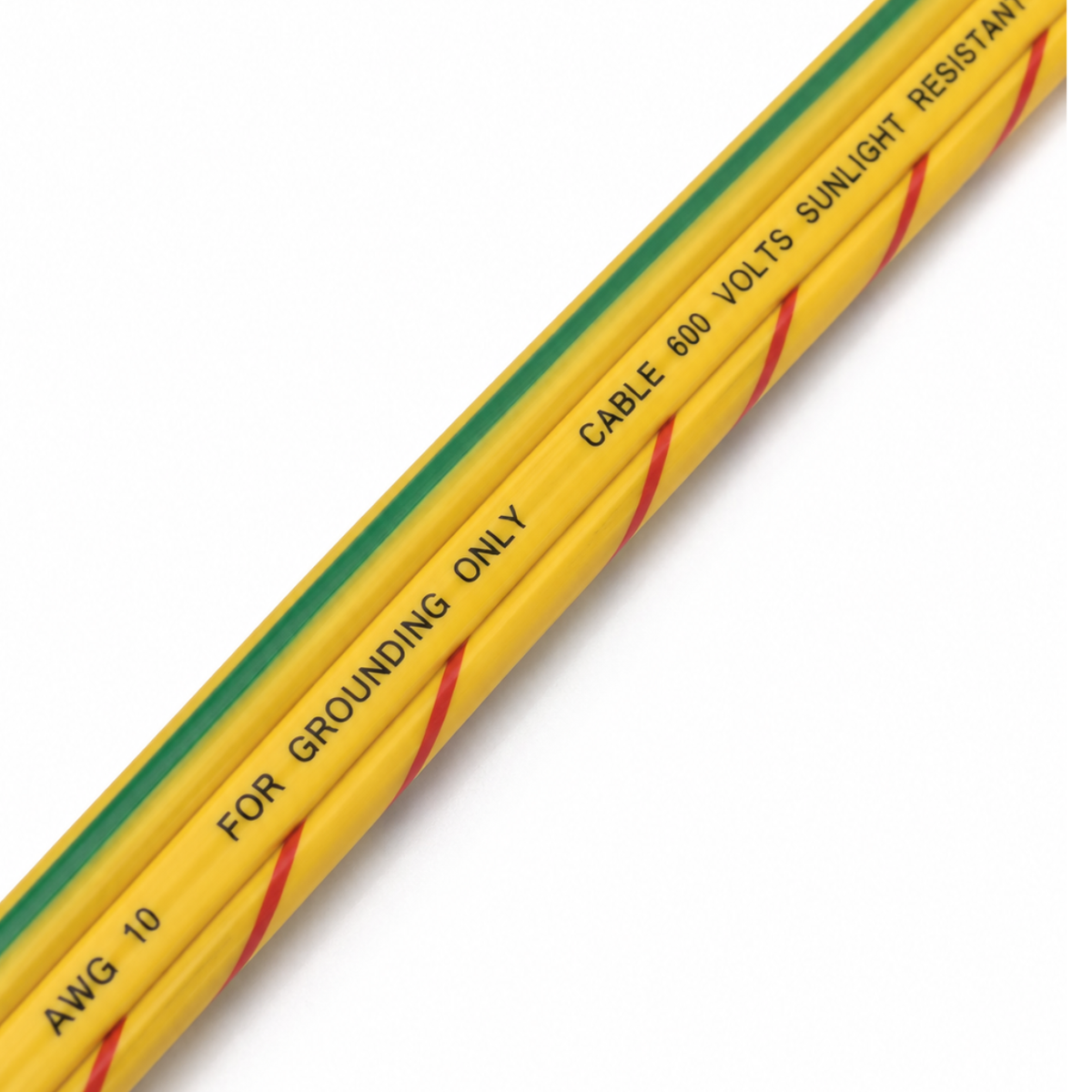

10/3 Flat Submersible Pump Cable (Jacket Color May Vary)

Cut to length and sold by the foot. Enter the desired footage in the QTY box.

The 10/3 Flat Submersible Pump Cable is designed for wiring within the casing of deep-well submersible water pumps. It is suitable for residential, agricultural, and industrial water well applications.

This cable can be used in compatible DC, 120VAC, or 240VAC applications, with the third conductor used as required for neutral or ground.

Applications

  • Deep-well submersible water pumps
  • Residential water well systems
  • Farm and agricultural water systems
  • Industrial water well applications
  • Compatible DC, 120VAC, and 240VAC installations

Features

  • Resistant to acid, abrasion, alkalis, flame, gas, and oil
  • Water resistant
  • Operating temperature range of -40°C to 75°C
  • Sequential footage markings for easier measuring and installation
  • Flat cable construction for use in submersible pump applications

Construction

Conductors: Annealed bare stranded copper
Jacket: Flat Polyvinyl Chloride (PVC)

Specifications

Wire Size: 10 AWG
Number of Conductors: 3
Ground Wire Size: 10 AWG
Insulation Thickness: 0.045 in
Nominal Outside Dimensions: 0.215 × 0.685 in
Weight: 0.151 lb per ft

Standards

UL Listed: UL 83 Type THW as Deep Well Submersible Pump Cable

Specifications and physical characteristics may vary slightly by manufacturer. Data shown is subject to change based on manufacturer-specific variations.
